From: Steve Revilak <steve <at> srevilak.net>
To: bug-gnu-emacs <at> gnu.org
Subject: 23.1; Incorrect toolbar icon display with (tool-bar-mode 1)
Date: Sat, 5 Dec 2009 22:49:26 -0500

[Message part 1 (text/plain, inline)]

Please write in English if possible, because the Emacs maintainers
usually do not have translators to read other languages for them.

Your bug report will be posted to the bug-gnu-emacs <at> gnu.org mailing list,
and to the gnu.emacs.bug news group.

Please describe exactly what actions triggered the bug
and the precise symptoms of the bug:

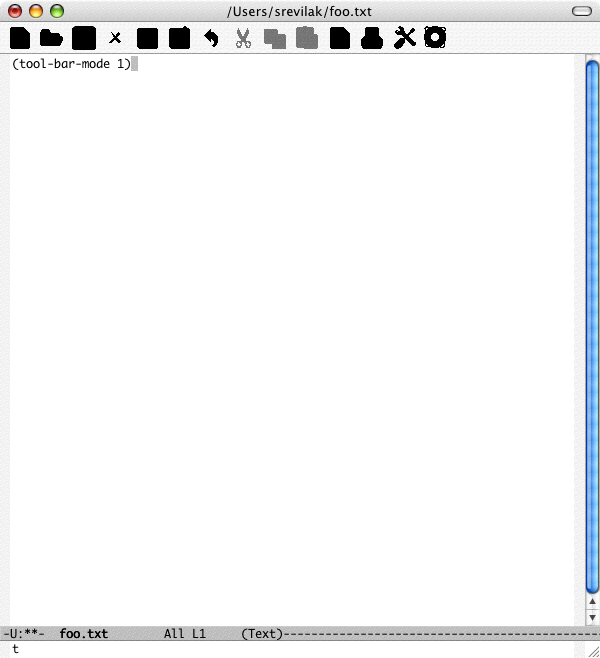

Symptoms: when (tool-bar-mode 1) is used with Emacs 23.1.1 on Mac OS
X, the toolbar icons are black and gray silhouettes.  Here is a screen
capture which shows toolbar mode on Emacs 23.

  http://www.cs.umb.edu/~srevilak/images/tool-bar-mode-23.png

I expected to see color tool bar icons, as show in the following image
(a screen capture taken from emacs 22.3.1)

  http://www.cs.umb.edu/~srevilak/images/tool-bar-mode-22.png

Steps to Reproduce:

Start emacs as follows:

  /Applications/Emacs-23.1.app/Contents/MacOS/Emacs --no-init-file

Once emacs has started, eval the following

  (tool-bar-mode 1)

uname for my system is

  Darwin spud.local 8.11.0 Darwin Kernel Version 8.11.0: Wed Oct 10 18:26:00 PDT 2007; root:xnu-792.24.17~1/RELEASE_PPC Power Macintosh powerpc

If Emacs crashed, and you have the Emacs process in the gdb debugger,
please include the output from the following gdb commands:
    `bt full' and `xbacktrace'.
If you would like to further debug the crash, please read the file
/Applications/Emacs-23.1.app/Contents/Resources/etc/DEBUG for instructions.


In GNU Emacs 23.1.1 (powerpc-apple-darwin8.11.0, NS apple-appkit-824.48)
 of 2009-10-14 on spud.local
Windowing system distributor `Apple', version 10.3.824
configured using `configure  '--with-ns''

Important settings:
  value of $LC_ALL: nil
  value of $LC_COLLATE: C
  value of $LC_CTYPE: nil
  value of $LC_MESSAGES: nil
  value of $LC_MONETARY: nil
  value of $LC_NUMERIC: nil
  value of $LC_TIME: nil
  value of $LANG: en_US.UTF-8
  value of $XMODIFIERS: nil
  locale-coding-system: utf-8-unix
  default-enable-multibyte-characters: t

Major mode: Text

Minor modes in effect:
  tooltip-mode: t
  tool-bar-mode: t
  mouse-wheel-mode: t
  menu-bar-mode: t
  file-name-shadow-mode: t
  global-font-lock-mode: t
  font-lock-mode: t
  global-auto-composition-mode: t
  auto-composition-mode: t
  auto-encryption-mode: t
  auto-compression-mode: t
  line-number-mode: t
  transient-mark-mode: t

Recent input:
<help-echo> <help-echo> <help-echo> <down> <down> <down>
<down> <down> <down> <down> <down> <down> <down> <down>
<down> <down> <down> <down> <down> <return> C-x C-f
f o o . t x t <return> ( t o o l - b a r - m o d e
SPC 1 ) C-x C-e s-x <help-echo> C-g C-x C-e <left>
<backspace> 0 <right> C-x C-e <left> <backspace> 1
<right> C-x C-e <help-echo> C-a C-k s-x s-x M-x r e
p o <tab> t <tab> <backspace> r <tab> <return>

Recent messages:
kill-region: The mark is not set now, so there is no region
Quit
Auto-saving...
Quit
t
nil
t
Auto-saving...
kill-region: The mark is not set now, so there is no region [2 times]
Making completion list...

[Message part 2 (application/pgp-signature, inline)]

Message #10 received at 5132 <at> emacsbugs.donarmstrong.com (full text, mbox):

From: Chong Yidong <cyd <at> stupidchicken.com>
To: Steve Revilak <steve <at> srevilak.net>
Cc: 5132 <at> debbugs.gnu.org
Subject: Re: 23.1; Incorrect toolbar icon display with (tool-bar-mode 1)
Date: Sun, 06 Dec 2009 14:10:45 -0500

> Symptoms: when (tool-bar-mode 1) is used with Emacs 23.1.1 on Mac OS
> X, the toolbar icons are black and gray silhouettes.  Here is a screen
> capture which shows toolbar mode on Emacs 23.
>
>   http://www.cs.umb.edu/~srevilak/images/tool-bar-mode-23.png
>
> I expected to see color tool bar icons, as show in the following image
> (a screen capture taken from emacs 22.3.1)
>
>   http://www.cs.umb.edu/~srevilak/images/tool-bar-mode-22.png

Did you compile Emacs with image support?  (You need the image
development libraries.  The output of `configure' should tell you
whether they were found.)

Message #15 received at 5132 <at> emacsbugs.donarmstrong.com (full text, mbox):

From: Steve Revilak <steve <at> srevilak.net>
To: Chong Yidong <cyd <at> stupidchicken.com>
Cc: 5132 <at> debbugs.gnu.org
Subject: Re: 23.1; Incorrect toolbar icon display with (tool-bar-mode 1)
Date: Sun, 6 Dec 2009 15:25:19 -0500

[Message part 1 (text/plain, inline)]

>From: Chong Yidong <cyd <at> stupidchicken.com>

>Did you compile Emacs with image support?  (You need the image
>development libraries.  The output of `configure' should tell you
>whether they were found.)

Chong,

Thanks for responding to my bug report.  I saved the configure command
line, as well as the summary sectionof configure's output, which I'll
reproduce below.

------------------------------------------------------------------
$ ./configure --with-ns

   [... didn't save this part ...]

Configured for `powerpc-apple-darwin8.11.0'.

  Where should the build process find the source code? /Users/srevilak/Desktop/emacs-23.1
  What operating system and machine description files should Emacs use?
        `s/darwin.h' and `m/macppc.h'
  What compiler should emacs be built with?               gcc -g -O2 -Wno-pointer-sign
  Should Emacs use the GNU version of malloc?             no
    (The GNU allocators don't work with this system configuration.)
  Should Emacs use a relocating allocator for buffers?    no
  Should Emacs use mmap(2) for buffer allocation?         no
  What window system should Emacs use?                    nextstep
  What toolkit should Emacs use?                          none
  Where do we find X Windows header files?                /usr/X11R6/include
  Where do we find X Windows libraries?                   /usr/X11R6/lib
  Does Emacs use -lXaw3d?                                 no
  Does Emacs use -lXpm?                                   no
  Does Emacs use -ljpeg?                                  no
  Does Emacs use -ltiff?                                  no
  Does Emacs use a gif library?                           no
  Does Emacs use -lpng?                                   no
  Does Emacs use -lrsvg-2?                                no
  Does Emacs use -lgpm?                                   no
  Does Emacs use -ldbus?                                  no
  Does Emacs use -lfreetype?                              no
  Does Emacs use -lm17n-flt?                              no
  Does Emacs use -lotf?                                   no
  Does Emacs use -lxft?                                   no
  Does Emacs use toolkit scroll bars?                     yes

$ make

$ make install
------------------------------------------------------------------


At the time, I was a surprised by the summary (it appeared that Emacs
would be compiled with png, jpeg support), but I went ahead and did
the compilation anyway.  After compiling, I tried to view a few .png
and .jpg files via

  C-x C-f /path/to/image-file RETURN

The .png and .jpg images displayed correctly, so I assumed that the
supporting libraries had been found.

After poking around Contents/Resources/etc/images, I see that there
are .xpm images for the toolbar (for example,
Contents/Resources/etc/images/help.xpm).  In Emacs 23I tried to open
help.xpm via C-x C-f, and what I see is exactly the same as the help
icon in the toolbar.


I've tried to recompile emacs 23.1.1, explictly requesting xpm
support.

  $ unset CFLAGS CXXFLAGS LDFLAGS
  $ ./configure --with-ns --with-xpm 2>&1 | tee ~/configure.out

Configure declared

  Does Emacs use -lXpm?                                   no

(I'll attach the full configure output).

After "make", and "make install", I repeated my earlier `steps to
reproduce'; I observed no change in behavior -- the toolbar icons are
still black silhouettes (and .png, .jpg image view correctly when
opened via C-x C-f.).

There are xpm libraries and header files installed on my system

  $ ls -l /usr/X11R6/lib/libXpm.*
  136 -rw-r--r--   1 root  wheel  136144 Nov  6  2006 /usr/X11R6/lib/libXpm.4.11.dylib
    4 lrwxr-xr-x   1 root  wheel      17 Jun 20 20:56 /usr/X11R6/lib/libXpm.4.dylib@ -> libXpm.4.11.dylib
  180 -rw-r--r--   1 root  wheel  183780 Mar 23  2007 /usr/X11R6/lib/libXpm.a
    4 lrwxr-xr-x   1 root  wheel      17 Jun 20 20:56 /usr/X11R6/lib/libXpm.dylib@ -> libXpm.4.11.dylib

  $ ls -l /usr/X11R6/include/X11/xpm.h
  16 -r--r--r--   1 root  wheel  16286 Mar 23  2007 /usr/X11R6/include/X11/xpm.h


What else can I try?


Steve Revilak

[configure.out (text/plain, attachment)]

[Message part 3 (application/pgp-signature, inline)]

Message #22 received at 5132 <at> emacsbugs.donarmstrong.com (full text, mbox):

From: Steve Revilak <steve <at> srevilak.net>
To: 5132 <at> debbugs.gnu.org
Subject: 23.1; FIXED: Incorrect toolbar icon display with (tool-bar-mode 1)
Date: Mon, 7 Dec 2009 08:46:34 -0500

[Message part 1 (text/plain, inline)]

Bug 5132 appears to be fixed on the trunk.

Last night, I checked out the CVS sources for emacs, according to
instructions posted at http://savannah.gnu.org/cvs/?group=emacs.

This morning, I followed the directions in INSTALL.CVS to compile from
source.  The specific commands I used were

  ./configure --with-ns
  make bootstrap
  make install

According to (emacs-version) the version number of this emacs is
23.1.50.1.

In version 23.1.50.1, the tool bar icons appear correctly -- as color
icons, not black and gray silhouettes.  I will attach a screen shot,
produced by my earlier `Steps to Reproduce'.  This screen shot shows
the correct icon presentation.

Steve


[Message part 3 (application/pgp-signature, inline)]

Message #25 received at 5132 <at> emacsbugs.donarmstrong.com (full text, mbox):

From: Dan Nicolaescu <dann <at> ics.uci.edu>
To: Steve Revilak <steve <at> srevilak.net>
Cc: 5132 <at> debbugs.gnu.org
Subject: Re: bug#5132: 23.1; FIXED: Incorrect toolbar icon display with (tool-bar-mode 1)
Date: Mon, 7 Dec 2009 07:19:44 -0800 (PST)

Steve Revilak <steve <at> srevilak.net> writes:

  > Bug 5132 appears to be fixed on the trunk.

In that case you can you please close the bug.

You can do that by sending an email to
5132-done <at> debbugs.gnu.org (i.e. BUGNUMBER-done <at> debbugs.gnu.org).


  > Last night, I checked out the CVS sources for emacs, according to
  > instructions posted at http://savannah.gnu.org/cvs/?group=emacs.
  >
  > This morning, I followed the directions in INSTALL.CVS to compile from
  > source.  The specific commands I used were
  >
  >   ./configure --with-ns
  >   make bootstrap
  >   make install
  >
  > According to (emacs-version) the version number of this emacs is
  > 23.1.50.1.
  >
  > In version 23.1.50.1, the tool bar icons appear correctly -- as color
  > icons, not black and gray silhouettes.  I will attach a screen shot,
  > produced by my earlier `Steps to Reproduce'.  This screen shot shows
  > the correct icon presentation.
  >
  > Steve

Message #30 received at 5132-done <at> emacsbugs.donarmstrong.com (full text, mbox):

From: Steve Revilak <steve <at> srevilak.net>
To: Dan Nicolaescu <dann <at> ics.uci.edu>
Cc: 5132-done <at> debbugs.gnu.org
Subject: Re: bug#5132: 23.1; FIXED: Incorrect toolbar icon display with
	(tool-bar-mode 1)
Date: Mon, 7 Dec 2009 10:48:32 -0500

[Message part 1 (text/plain, inline)]

>From: Dan Nicolaescu <dann <at> ics.uci.edu>
>Subject: Re: bug#5132: 23.1; FIXED: Incorrect toolbar icon display with (tool-bar-mode 1)

>Steve Revilak <steve <at> srevilak.net> writes:
>
>  > Bug 5132 appears to be fixed on the trunk.
>
>In that case you can you please close the bug.
>
>You can do that by sending an email to
>5132-done <at> emacsbugs.donarmstrong.com (i.e. BUGNUMBER-done <at> emacsbugs.donarmstrong.com).

Dan,

Thanks for the instructions.  I will do that.

Steve

[Message part 2 (application/pgp-signature, inline)]

Previous Next

GNU bug tracking system
Copyright (C) 1999 Darren O. Benham, 1997,2003 nCipher Corporation Ltd, 1994-97 Ian Jackson.
